Dimming Technology and LED Edison Bulb Compatibility Challenges and Solutions?

Have you ever encountered this frustration: your newly bought LED Edison bulbs flicker or can't be dimmed properly? It's indeed frustrating, shattering the beautiful ambiance instantly.

Compatibility between LED Edison bulbs and dimmers is key to achieving ideal lighting. Simply put, ensuring both the bulb and dimmer are clearly marked as compatible, especially choosing dimmers designed for LEDs, effectively avoids issues like flickering, buzzing, or limited dimming range, allowing for a smooth dimming experience.

Hi, I'm Wallson, Marketing Manager at Omitaled. With 30 years in the lighting industry, we deeply understand how important it is to provide customers with high-quality and reasonably priced products. Like my client Jacky, many buyers and product managers are looking for reliable suppliers and quality lighting solutions. LED Edison bulbs are popular for their vintage look and energy-saving features, but dimming compatibility has been a headache for many users. As a manufacturer based in Dongguan, China (DONGGUAN BOFA PHOTOELECTRIC TECHNOLOGY CO., LTD), specializing in LED filament bulbs and G4/G9 products, we at Omitaled often receive inquiries about this. Today, I'll delve into the challenges of dimming LED Edison bulbs and how to find suitable solutions, so your space lighting can be truly at your command.

Why Do Compatibility Issues Arise Between LED Edison Bulbs and Dimmers?

Have you tried dimming LED Edison bulbs, only to be disappointed? The bulbs might flicker, make noise, or not dim smoothly, which is very confusing and annoying.

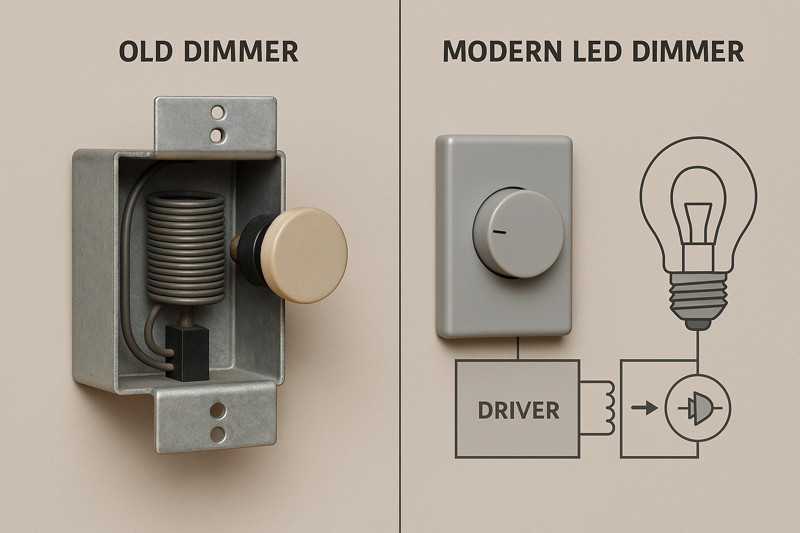

Compatibility issues mainly stem from fundamental differences in operating principles and required driver technology between LED bulbs and traditional incandescent lamps. Many older dimmers are designed for high-power incandescent lamps and don't match the internal driver circuits of low-power LED bulbs, causing conflicts.

To understand compatibility issues, we first need to know that LED bulbs and traditional incandescent lamps have completely different light-emitting principles. Traditional incandescent bulbs are resistive loads, and dimmers (usually leading-edge dimmers like TRIAC dimmers) directly control the filament's power by changing the AC conduction angle, thus adjusting brightness. This method is simple and direct.

However, LED bulbs contain complex driver circuits that convert AC power to the DC power and specific current required by LED chips. These driver circuits are very sensitive to input voltage and current waveforms. Many older dimmers designed for incandescent bulbs may not work well with LED driver circuits due to their operating methods and minimum load requirements. For example:

1. Minimum Load Issue¹: Traditional dimmers often require a certain minimum power load to function correctly. LED bulbs consume very little power and may not meet the minimum load requirement of some older dimmers, causing the dimmer to fail to recognize or stably control the bulb. Our E27 LED bulbs, for instance, often have low wattages like 2W, 3W, or 4W.
2. Driver Circuit Interference²: Electronic components in LED driver circuits can interact with electromagnetic interference (EMI) generated by the dimmer, leading to flickering or noise.
3. Mismatched Dimming Methods³: Leading-edge dimmers are older technology and are more prone to incompatibility with some LED drivers. Trailing-edge dimmers are generally considered more suitable for LEDs because they provide a smoother dimming curve and reduce noise and flicker.

Therefore, simply replacing old incandescent bulbs with LED Edison bulbs in an old dimming system often leads to various problems.

What Are Common Failures When Dimming LED Edison Bulbs?

Have you noticed strange phenomena when trying to dim LED Edison bulbs? For instance, the light flickers constantly, or the dimming range is very small, which really affects the user experience.

Common LED dimming failures include: bulb flickering or strobing, buzzing or hissing sounds, a very limited dimming range (e.g., only dimming from 100% to 50%), bulbs suddenly turning off or jumping in brightness, and inability to dim at all.

Understanding these common failures can help us better diagnose the problem. Here are some typical LED Edison bulb dimming failures and their possible causes:

For example, if you are using E27 base LED filament bulbs, although they have a vintage appearance, their internal LED technology still requires a compatible dimming solution. We offer many such dimmable E27 filament bulbs in various styles like globes, sphericals, and tubes. Even low-power LED spotlights could experience these issues if used on an unsuitable dimming circuit. These failures not only affect the lighting experience but can also shorten the lifespan of the bulb or dimmer in the long run.

How Do I Choose the Right Dimmer for My LED Edison Bulbs?

Faced with a dazzling array of dimmers on the market, do you feel overwhelmed? Worried about buying the wrong dimmer, causing your LED Edison bulbs not to work properly, wasting both money and energy.

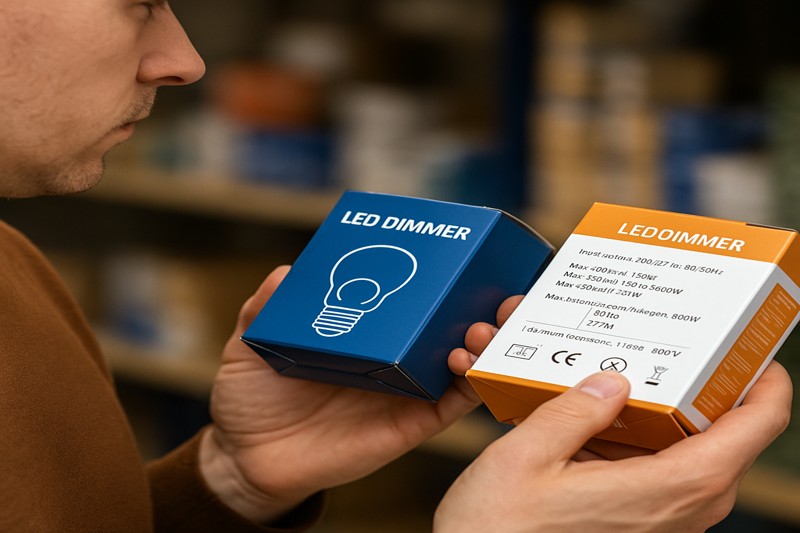

The primary principle for choosing a dimmer is to look for products clearly labeled "LED Compatible" or "For LED Use." Carefully read the specifications of both the dimmer and the LED bulb to ensure they match in terms of power range and dimming type (e.g., trailing-edge).

Choosing the right dimmer is crucial to solving compatibility issues. Here are some key steps and considerations:

1. Confirm "LED Compatible⁴" Labeling: This is the most basic and important point. When purchasing a dimmer, make sure to choose products whose packaging or product description clearly states they support LED lighting. Universal dimmers often claim LED compatibility, but it's best to check their detailed specifications.

2. Understand Dimming Types:

   • Trailing-edge Dimmers⁵: Generally considered the best choice for compatibility with LED bulbs. They provide smoother dimming and significantly reduce flickering and noise.
   • Leading-edge Dimmers (TRIAC Dimmers): This is older technology, primarily designed for incandescent lamps. While some LED bulbs claim compatibility with leading-edge dimmers, the probability of issues is relatively higher. If you must use one, ensure both the bulb and dimmer explicitly support it.

3. Check Load Range:

   • Minimum Load: LED bulbs have low wattage. You need to ensure the dimmer's minimum load requirement is lower than the total wattage of the LED bulbs you plan to connect. If the total bulb wattage is too low, the dimmer may not function correctly. Many of our E27 and E14 bulbs, for example, are low wattage.
   • Maximum Load: For LED loads, a dimmer's maximum power rating is usually much lower than its nominal incandescent maximum power. For example, a dimmer rated for 600W incandescent might only handle 100W or 150W of LED load. Always calculate based on the LED load to avoid overloading.

4. Consult Bulb Manufacturer's Recommendations: Many LED bulb manufacturers (including us at Omitaled) provide lists of compatible dimmers or offer advice on dimmer types and specifications. This is very valuable information.

5. Consider Features like "Flicker-Free⁶" or "Smooth Dimming": Some high-end LED dimmers specifically highlight their optimized performance for LEDs, such as providing a flicker-free dimming experience. Our E27 filament bulbs are often designed to be dimmable to provide this flexibility.

What Role Does the LED Edison Bulb Itself Play in Dimming?

Do you think any LED bulb can be dimmed? In reality, not all LED bulbs are inherently dimmable, which might derail your dimming plans.

The bulb itself must be clearly marked as "Dimmable." Using a non-dimmable LED bulb with a dimmer will not only fail to dim but may also damage the bulb or the dimmer. The design and quality of the bulb's internal driver circuit directly affect dimming performance.

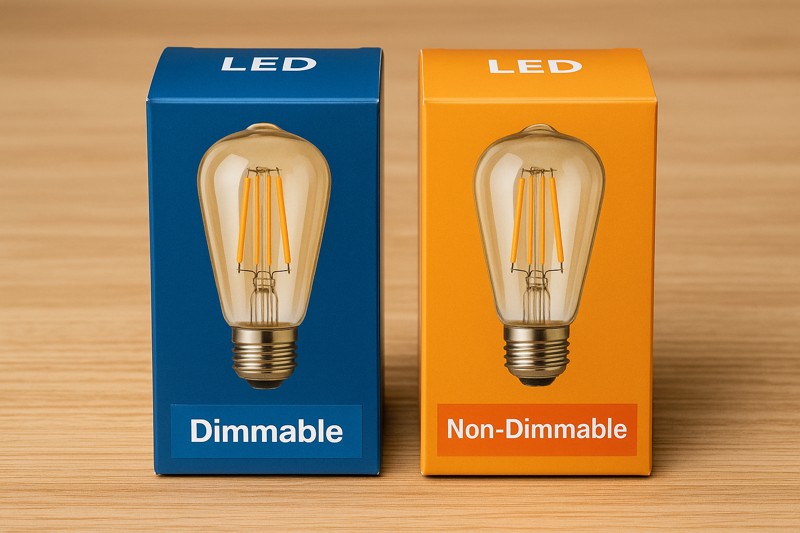

%Comparison of two LED Edison bulb packages, one clearly marked "Dimmable," the other not or marked "Non-Dimmable"

Even if you choose the most advanced LED-compatible dimmer, if the LED Edison bulb itself does not support dimming, all efforts will be futile. Here are key points to note about the bulb:

1. "Dimmable" is a Prerequisite: When purchasing LED Edison bulbs, always check the packaging or product specifications for a "Dimmable" label. If the bulb is "Non-Dimmable," it cannot be used in any dimming circuit. Forcing a non-dimmable LED bulb onto a dimming circuit can lead to flickering, shortened lifespan, or even damage to the bulb's internal driver or the dimmer. Many of our listed E27 and E14 LED filament bulbs are explicitly "dimmable."

2. The Driver Circuit is Core: The internal driver circuit of a dimmable LED bulb is specially designed to respond to changes in the dimmer's output signal and adjust the current delivered to the LED chips accordingly. This driver circuit is more complex than that of a non-dimmable bulb and may cost slightly more.

3. Variations in Dimming Quality: Dimmable LED bulbs from different brands and models may also vary in their dimming performance. Some high-quality LED bulbs can achieve smooth dimming from 100% to near 0% without flickering or noise throughout the dimming range. In contrast, some lower-quality bulbs may have a narrower dimming range or exhibit minor issues at certain brightness levels. This usually depends on the driver circuit design and the quality of components used. At Omitaled, we are committed to providing high-quality LED light sources, including E27 and E14 LED filament bulbs with excellent dimming performance.

4. Compatibility Statements: Some bulb manufacturers test their products with specific dimmers and publish compatibility lists on their websites. You can refer to this information when making a purchase.

Therefore, ensuring your chosen LED Edison bulb is clearly marked as a dimmable model is the first step to successful dimmable lighting.

Are There Any Remedies for Existing Incompatible Dimming Setups?

If you've already installed LED Edison bulbs and a dimmer only to find them incompatible, is it a major headache? Must everything be replaced, leading to waste?

The best long-term solution is usually to replace the dimmer with one that is compatible with your LED bulbs. In some specific cases, adding a load resistor or an LED dimmer stabilizer might be considered, but this is not preferred and requires caution.

When you find your existing LED Edison bulbs and dimmer don't work well together, don't despair. You can try a few solutions:

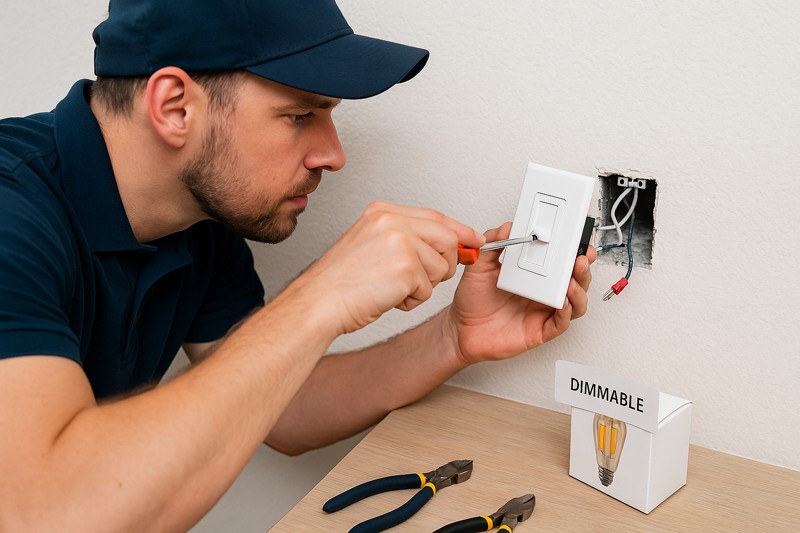

1. Replace the Dimmer (Preferred Solution): This is the most direct and usually the most effective solution. Replace the existing incompatible dimmer with a modern dimmer (like a trailing-edge LED dimmer) that explicitly supports LEDs and matches your bulb load. While this requires some investment, it offers the best dimming performance and reliability in the long run.

2. Replace the Bulbs: If your dimmer is a newer LED-compatible model, but the bulbs are old or have poor dimming performance, then replacing them with high-quality, more compatible dimmable LED Edison bulbs⁷ might be a more economical choice. Our E27 and E14 dimmable LED filament bulbs, for instance, are designed for good performance across various styles like globes, sphericals, tubes, and angular shapes.

3. Add a Load Resistor (Dummy Load): Consider this cautiously and only in specific situations. If the primary issue is that the total LED bulb wattage is too low for the dimmer's minimum load requirement, a load resistor⁸ can sometimes be connected in parallel to increase the circuit's total load. However, this method consumes extra energy, reduces the energy-saving benefits of LEDs, and the resistor generates heat, requiring careful installation. This is usually seen as a temporary or last resort and is best handled by a professional.

4. Use an LED Dimmer Stabilizer/Adapter: Some small devices on the market are designed to solve LED dimming problems. They can be connected in series or parallel in the circuit to improve compatibility and reduce issues like flickering. Their working principles vary, so research if they suit your specific situation before buying.

5. Check Wiring and Installation: Ensure all wiring is correct and secure. Faulty wiring can also cause dimming problems. If unsure, consult a licensed electrician.

Before attempting any electrical modifications, always turn off the power and strictly follow safety procedures. If you are not familiar with electrical work, it is highly recommended to hire a professional electrician to ensure safety and effectiveness.

What Are the Future Trends in LED Dimming Compatibility?

Facing the current complexities of LED dimming compatibility, do you hope for simpler, more standardized solutions in the future? Can we expect a plug-and-play dimming era?

Future trends are moving towards smarter and more standardized solutions. The popularization of smart lighting control protocols like DALI, Zigbee, and Bluetooth Mesh, along with broader compatibility testing and certification among manufacturers, will gradually simplify the LED dimming experience.

Although challenges in LED dimming compatibility still exist, the industry is constantly advancing, and future trends are promising:

1. Broader Standardization: Industry organizations and manufacturers are working to promote more unified standards for LED drivers and dimmer interfaces to improve interoperability. While complete unification may take time, progress is evident.

2. Popularization of Smart Lighting Control Systems:

   • DALI (Digital Addressable Lighting Interface): A professional digital lighting control protocol that provides very precise and stable dimming control, often used in commercial and high-end residential projects.
   • Zigbee, Z-Wave, Bluetooth Mesh: These wireless smart home protocols are increasingly integrated into lighting products. Through compatible gateways and apps, users can easily achieve wireless dimming, color temperature adjustment, and even color changes for LED bulbs, including E27 base bulbs like many of our dimmable models.
   • Wi-Fi Control: Some LED bulbs directly support Wi-Fi connection, allowing control via a mobile app without an additional dimmer.

3. Continuous Improvement in Dimmer Technology: Dimmer manufacturers are constantly introducing new products with better algorithms to adapt to various LED load characteristics, offering wider dimming ranges and smoother performance.

4. Efforts from Bulb Manufacturers: LED bulb manufacturers are also improving their driver circuit designs to enhance compatibility with various dimmers and providing more detailed compatibility information lists. We at Omitaled (DONGGUAN BOFA PHOTOELECTRIC TECHNOLOGY CO., LTD) are also keeping up with and adopting the latest technologies to ensure our LED lighting products offer a better experience for our customers, as seen with our range of dimmable E27 and E14 LED filament bulbs.

5. "Out-of-the-Box" Dimming Kits: More pre-matched LED bulb and dimmer kits may become available in the future, allowing consumers to purchase and install them directly without worrying about compatibility issues.

While completely eliminating compatibility issues may still take time, choosing and installing dimmable LED Edison bulbs will undoubtedly become simpler and more reliable with technological advancements and improved industry standards.

Conclusion

Successfully achieving smooth dimming with LED Edison bulbs hinges on carefully selecting compatible bulbs and dimmers. Paying attention to product specifications and compatibility statements can save you a lot of trouble and help create the ideal lighting environment.
