How Can You Easily Retrofit Your Existing Fixtures for LED Edison Bulbs?

Love your old light fixtures but hate the high energy bills and constant bulb changes? Upgrading seems complicated and expensive. Don't replace them; retrofit them for modern, beautiful LEDs.

To retrofit a fixture for LED Edison bulbs, first ensure basic compatibility by checking the base type, voltage, and physical size. Then, if you have a dimmer, you will likely need to upgrade the dimmer switch to an LED-compatible model to prevent flickering.

As the Marketing Manager for Omitaled, I often speak with clients like Jacky in the U.S. who manage large inventories of lighting. He once had a storeroom full of beautiful vintage fixtures he thought he'd have to scrap because of their high energy use. But a few simple checks and minor upgrades saved him a fortune and allowed him to keep the classic aesthetic he loved. Retrofitting is usually much easier than people think. It’s about knowing what to check. Let's look at the key steps.

Is the Basic Swap Really as Simple as Screwing in a New Bulb?

You want the efficiency and beauty of LEDs but worry about compatibility. Will a new bulb just work, or will it cause problems? The first check is the simplest but also the most important one you can make.

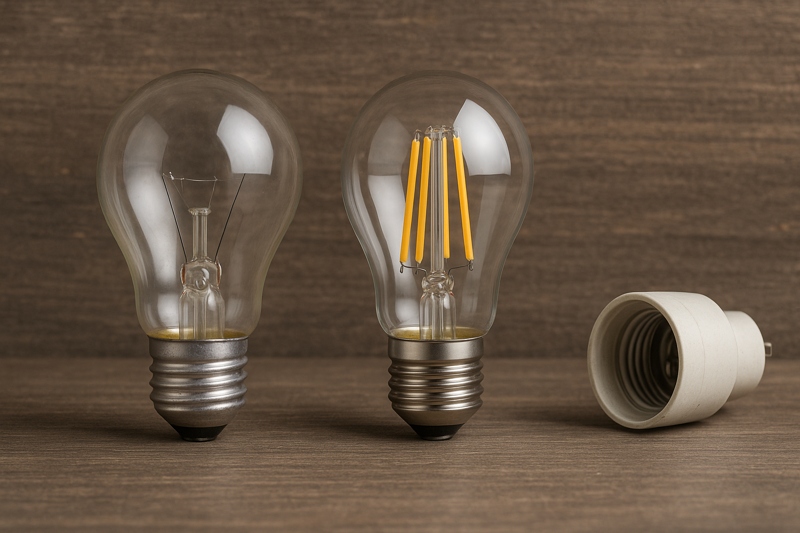

Yes, in most cases, it is that simple. For most fixtures with a standard E26 or E27 socket, you can directly swap an incandescent bulb with an LED Edison bulb, as long as the voltage matches and the LED's wattage is below the fixture's maximum rating.

The majority of retrofit projects are incredibly straightforward. Before you worry about complex wiring or dimmers, you need to confirm the fundamental fit. This starts with looking at the old bulb you are replacing and the fixture itself. If you get these basics right, you are already most of the way there.

The Foundation: Voltage and Base

The first step is to confirm the electrical and physical connection.

• Voltage¹: This is non-negotiable. Look at the base of the old bulb or the fixture label. In North America, the standard is 110V-130V. In Europe and many other parts of the world, it's 220V-240V. You must buy an LED bulb that matches your region’s voltage. Using the wrong voltage will instantly destroy the bulb.
• Base Type²: The most common screw-in base is the E26 (in the US) or E27 (in Europe). However, smaller chandeliers or decorative sconces might use an E12 or E14 base. Make sure your new LED bulb has the exact same base as the old one.

The Safety Check: Wattage

Every light fixture has a maximum wattage rating, such as "E27 max 1 x 60W". This isn't about brightness; it's a thermal safety limit to prevent old, hot incandescent bulbs from overheating the fixture. This is where LEDs have a huge advantage. A classic 60W incandescent bulb gets very hot, while an LED bulb that produces the same amount of light might only use 8W of energy. This low power consumption means the LED will run much cooler and be safely under the fixture’s maximum wattage limit.

Why Do Your New LED Bulbs Flicker With Your Old Dimmer Switch?

You've installed beautiful, dimmable LEDs, but now your lights flicker and buzz annoyingly. This completely ruins the mood and makes you worry that something is wrong or unsafe. The problem isn't the bulb; it's the hidden switch in your wall.

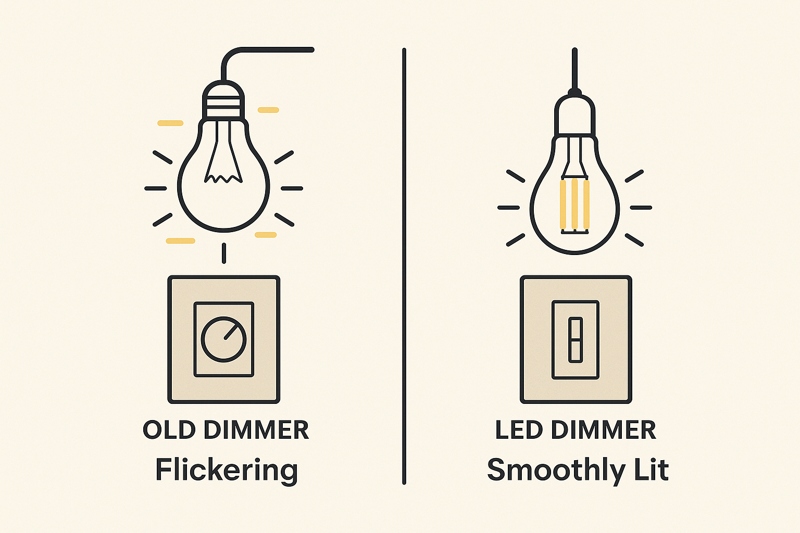

Old dimmers were designed for high-wattage incandescent bulbs and can't properly control low-wattage LEDs. To fix this, you must retrofit the wall switch by replacing it with a modern, LED-compatible model to ensure smooth, flicker-free performance.

This is the single most common issue I hear about from customers after they've made the switch to LED. They buy a high-quality, dimmable LED bulb, screw it in, and it flickers. Their first thought is that the bulb is defective. But the real culprit is a technology mismatch between the new bulb and the old dimmer switch.

Understanding the Technology Mismatch

An old-style dimmer was built to handle a large electrical load, expecting to control a 60W or 100W incandescent bulb. It works by "chopping" the electrical wave to reduce power. An energy-efficient LED bulb, however, might only draw 7W or 8W of power. This load is so small that the old dimmer can't detect it properly. This leads to an unstable power supply to the bulb's internal driver, which results in the flickering, buzzing, or strobing effect you see. It also puts stress on the bulb's electronics, which can cause it to fail much sooner.

The Retrofit Solution: A Simple Swap

The great news is that this is an easy fix. The solution is to replace the dimmer switch in your wall. This is a standard and inexpensive job for any electrician, or a manageable project for a skilled DIYer. You must install a dimmer that is specifically rated for LED or CFL/LED use (often called a "C-L®" dimmer or a "trailing-edge" dimmer). These modern switches are designed to work perfectly with the low power draw of LED bulbs⁴, giving you a full range of smooth, silent dimming. It's a small investment that protects your new bulbs and gives you the performance you paid for.

Do You Actually Need to Rewire the Fixture for an LED Retrofit?

You're worried that upgrading to LED means complex, expensive rewiring, and the thought of dealing with old, brittle wires is a major headache. Is this a necessary step? In most cases, the answer is a relieving no.

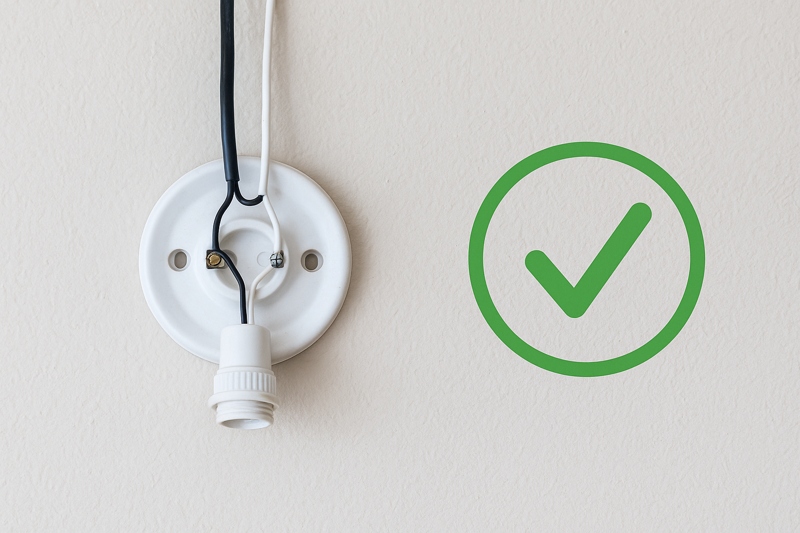

For a standard fixture that uses a screw-in bulb, you do not need to rewire anything to switch from incandescent to LED Edison bulbs. The existing wiring and socket are more than capable of handling the lower power needs of LEDs.

The fear of rewiring stops many people from upgrading, but it's usually an unfounded concern. Let's break down when you can simply swap the bulb and the rare cases where more work might be needed.

The Common Scenario: No Rewiring Needed

This applies to over 95% of retrofit projects in homes and businesses. If you have a standard lamp, pendant, or chandelier that uses a common screw-in bulb, you're in luck. The existing electrical wires in the fixture were designed to handle the high current of hot incandescent bulbs. Since LED bulbs use up to 90% less energy, they put far less stress on these wires. As long as the socket and wires are in good physical condition (not cracked, rusted, or frayed), they are perfectly safe to use for your LED upgrade. Just screw in the new bulb and you're done.

The Common Scenario: No Rewiring Needed

This applies to over 95% of retrofit projects in homes and businesses. If you have a standard lamp, pendant, or chandelier that uses a common screw-in bulb, you're in luck. The existing electrical wires in the fixture were designed to handle the high current of hot incandescent bulbs. Since LED bulbs use up to 90% less energy, they put far less stress on these wires. As long as the socket and wires are in good physical condition (not cracked, rusted, or frayed), they are perfectly safe to use for your LED upgrade⁵. Just screw in the new bulb and you're done.

The Rare Exceptions: When Rewiring Might Be Needed

There are a few specific situations where you can't just swap the bulb:

• Old Fluorescent Fixtures: If you want to retrofit an old fluorescent tube fixture to use LED tubes, you must first bypass or remove the old electronic or magnetic ballast. This is a rewiring job⁶ that disconnects the old power regulator.
• Some Halogen Fixtures: Certain low-voltage fixtures, often using G9 or GU10 bulbs, have an external transformer to step down the voltage. Some of these old transformers are incompatible with the sensitive drivers in LED bulbs and must be replaced with a modern LED driver.
• Damaged Fixtures: If you look at the fixture's wiring and it is visibly brittle, cracked, or crumbling from age and heat, it is a fire hazard. This wiring should be replaced by an electrician for safety, regardless of what kind of bulb you plan to use.

What If Your Fixtures Use Strange, Non-Standard Bulb Types?

You have beautiful light fixtures, but they use unusual bulbs like tiny halogen G9 capsules or long R7s sticks. You assume they're impossible to retrofit and are stuck with the old technology. Don't give up on them; there is almost certainly an LED solution.

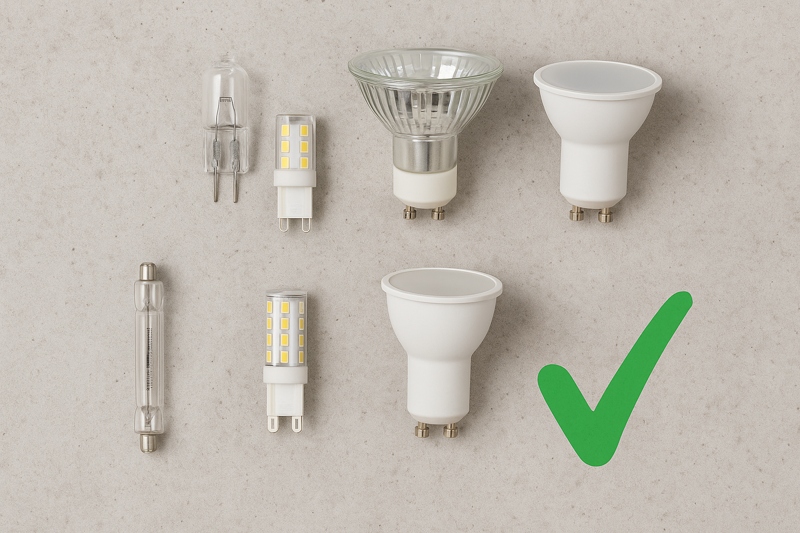

Yes, you can retrofit most specialty fixtures. LED replacements now exist for a huge variety of unique bases like G9, GU10, and even R7s linear bulbs. The key is to find the right replacement and double-check its physical size before you buy.

One of the best things about the LED revolution is the innovation in bulb design. As a manufacturer, we at Omitaled have created LED versions of nearly every type of bulb imaginable. So, when you're looking to retrofit an unusual fixture, your first step is simply to identify the base.

Finding the Direct LED Replacement

Almost every bulb base now has an LED equivalent.

• GU10 and G9: These small, bi-pin bulbs are common in track lighting and modern decorative fixtures. We offer direct LED replacements that pop right into the same sockets.
• R7s: These are the long, linear bulbs often found in powerful floor lamps ("torchières") or outdoor floodlights. You can now buy LED R7s bulbs that fit into the same spring-loaded clips.
• BA15D, B22, and more: From bayonet mounts to small appliance bulbs, an LED version likely exists. The key is to carefully note the base code on the old bulb and search for that.

Special Considerations for Specialty Bulbs

When retrofitting these types, there are two extra things to check. First, because the LED version has to contain a small electronic driver, it is sometimes slightly larger or longer than the halogen original. Measure the space inside your fixture's housing to make sure the new LED bulb will physically fit. Second, as mentioned before, some of these low-voltage systems use transformers. Check if the transformer is LED-compatible. If not, it may need to be replaced with an LED driver for the new bulbs to work correctly.

Conclusion

Retrofitting your old fixtures for LED Edison bulbs is simple and cost-effective. By checking the base, voltage, and dimmer, you can easily upgrade. For most fixtures, it’s a direct swap.
